Explain Labs

Model driven educational tools for neonatal care

Explain is a physiological simulation engine for neonatology. It models the cardiac and respiratory systems as a network of compartments — capacitances, resistors, time-varying elastances, gas exchangers and diffusors — and steps them in real time, in a browser.

  • 35built-in scenarios
  • 0runtime dependencies
  • MITlicensed, publicly
  • DOI10.5281/zenodo.21389097

What we build

Physiology you can push on

Simulate, don't animate

Nothing on screen is scripted. Every pressure, flow, volume and blood gas is computed from a model of the patient. Change a resistance, open a duct, turn up the PEEP, and the whole circulation responds the way physiology says it should.

Scenarios are the curriculum

Thirty-five model definitions ship with the engine: a healthy term neonate, preterms from 24 to 36 weeks, a fetus, an adult, and congenital heart disease from HLHS and dTGA to TAPVC, coarctation, PA-IVS and six PDA variants. Each one is readable JSON you can fork.

Runs anywhere a browser does

Plain JavaScript in a Web Worker, no dependencies and nothing to install. A lecture hall laptop and a phone at the bedside run the same model at the same speed.

Applications

Five ways to use it

Free account required

Explain — the simulator

The full model. Load or build a patient, drive the ventilator and ECLS, and watch circulation, respiration and blood gases respond in real time — down to the pressure in any single compartment.

modeling.explain-labs.com

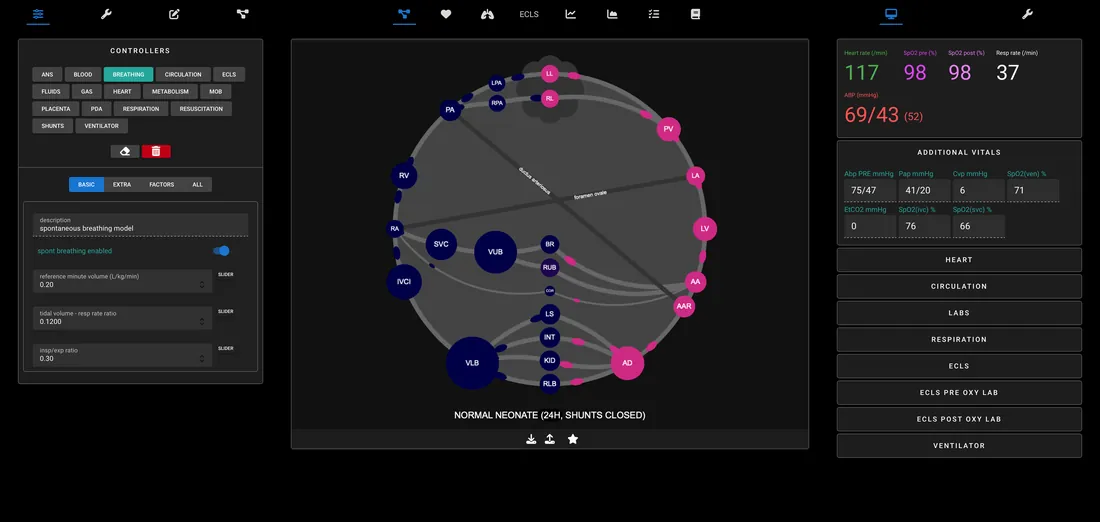

The Explain simulator: a circular circulation diagram of a normal neonate with the breathing controller on the left and live vital signs on the right.

Free account required

Explain Lessons

Guided lessons on the complex neonatal physiology of congenital heart disease, built on the simulator. Each step pairs a short explanation, in Dutch or English, with the live model, so you can close the duct or dilate the outflow tract and see what happens. The example shows the tetralogy of Fallot lesson.

Open the lesson

The tetralogy of Fallot lesson on the duct-dependent pulmonary flow step: lesson text and a Close the duct button on the left, the circulation diagram with the ductus arteriosus highlighted in the centre, and a live monitor and flow read-outs on the right.

Free account required

Mechanical ventilator training

Learn to use a neonatal ventilator on a simulated patient, step by step, in Dutch or English. Start ventilation, change the settings and follow the blood gas, then see how the ventilator reacts to stiff lungs, atelectasis, a mucus plug or a disconnected circuit. The example shows the SLE6000 lesson.

Open the lesson

The SLE6000 lesson on the PIP, rate and CO2 step: lesson text on the left, a replica of the ventilator screen with pressure, flow and volume waveforms in the centre, and a live monitor and arterial blood gas on the right.

Free account required

Explain Patient Monitor

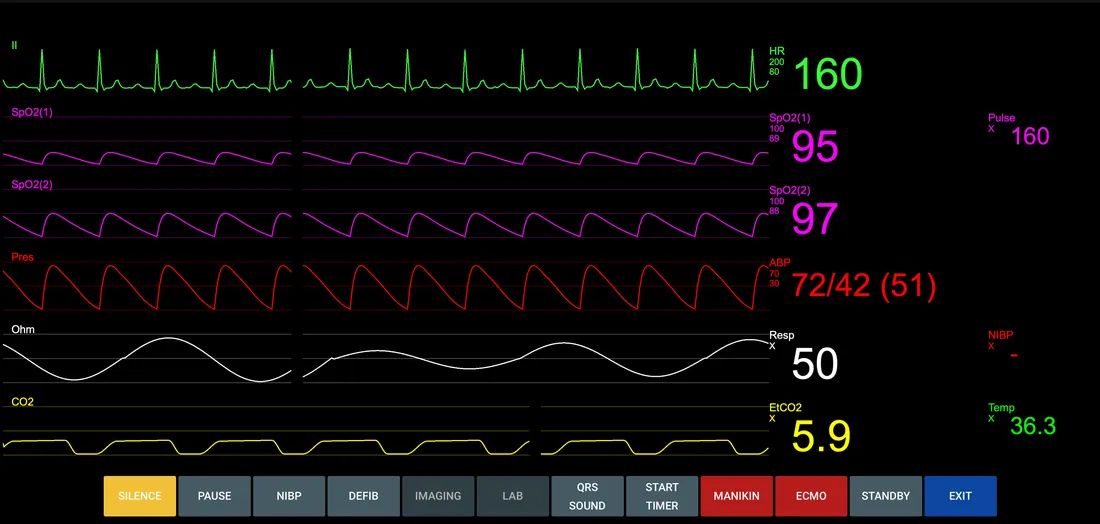

A patient monitor trainer with a remote instructor console. The instructor runs the patient from a computer or tablet, and one or more monitors show it live, with waveforms, numerics and real alarms. Everything is logged for a printable debriefing report.

vitals.explain-labs.com

The Explain Patient Monitor instructor console: patient controls for rhythm and vital signs on the left, and a live preview of the monitor with ECG, pleth, arterial pressure, CO2 and respiration traces and their numerics on the right.

Free account required

Cradle

Clinical Reasoning And Data-driven LEarning — an AI companion for neonatology.

Create an account

Cohort data analysis is by invite — request access.

The Cradle start screen: Lucy, the AI assistant, offers example neonatal care questions, with Clinical, Cohort and Dashboard tabs above and a question box below.

Open source and science

Open, and checkable

Explain is open. The engine and the web app are public on GitHub under the MIT licence, the model definitions are readable JSON, and the engine is archived and citable on Zenodo. If you want to know what a scenario actually does, you can read the code that does it.

Antonius, T. Explain — a physiological simulation engine for neonatology. Zenodo. https://doi.org/10.5281/zenodo.21389097
